MOTM-650 4-Channel MIDI-CV Converter

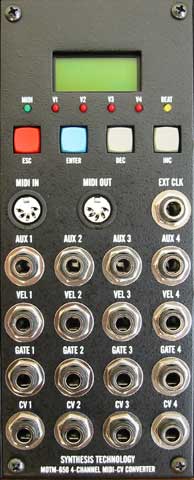

MOTM-650 panelQuantity: 0
Modifications: none

From the Synthtech website:

The MOTM-650 is a 2U wide, full-featured 4-channel MIDI-CV converter. Features include:

  • Voice allocations settable as four 1 voice, two 2 voice, or one 4 voice group – each voice group separately addressable via MIDI
  • Voice assignment modes on a per voice configuration: Poly 1, Poly 1 steal, Poly 2, Poly 2 steal, Unison, Solo Unison, Solo, Solo Rotate.
  • Dual arpeggiators, each arpeggiator assignable to any active voice group – one arpeggiator per voice group
  • Arpeggiator clock sources – MIDI IN Clock, internal clock (60-238BPM weighted), or external
  • Arpeggiator clock divisors /4, /3, /2, /1.5, 1X, 1.5X, 2X and 4X the clock rate
  • Arpeggiator note order as up, down, up/down, and down/up
  • Arpeggiator modes are normal, ordered, ping pong, and random
  • Portamento – per voice group configurable as constant rate or constant time
  • Each voice group is independently configurable
  • Firmware updateable via MIDI (Windows and Mac OS 9 update utilities provided)
  • All MOTM-650 options settable via MIDI CCs or MIDI System Exclusive commands as well as the front panel user interface
  • MOTM-650 Settings and state are remembered across power cycles
  • Patch storage for MOTM-650 settings (up to 32) – recallable via MIDI patch change command
  • Microtuning per MIDI spec
  • Pitch bend adjustable from +/- 0 to 24 to be added to note CV on all voices
  • Each of 4 AUX outputs assignable to pitch bend, channel aftertouch, or any MIDI CC.
  • Velocity jack on each voice can be configured to be velocity or a trigger – providing a 5ms pulse when the voice is retriggered
  • LEDs to monitor MIDI IN activity, internal/external/MIDI clock, and voice gate operation
  • 8X2 LCD with variable backlight and 4 buttons for the user interface
  • External clock in jack
  • Transmits MIDI clock if set to external or internal clock

The MOTM-650 packs all these features into a 2U wide module, using the latest SMT data converters, low-drift op amps and precision voltage references. Most MIDI-CV converters use 12-bit DACs: the MOTM-650 uses a true 16-bit DAC, and an octal 10-bit DAC for the Velocity/Aux outputs. No other MIDI-CV converter has as many features in a small space.
