Blacet Research EG2070 Voltage Controlled Event Generator

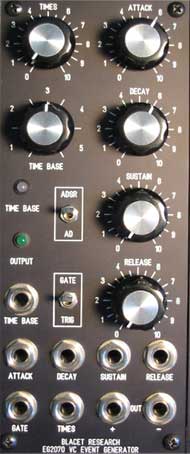

Blacet envelope generator panelQuantity: 2

From the Blacet website:

  • Wide Range Voltage Controlled Envelope Generator
  • 600µS to 1 Hour
  • Five Time Base Ranges selectable with VC
  • AD (Attack/Decay), Triggered. Sustain Control acts as bias.
  • ADSR (Attack, Decay, Sustain, Release), Gated
  • LFO, Full control of Attack and Decay ramps. Gated with Semi Chaotic Release Time
  • Output Level LED
  • Time Base LED Blinks at slower rates for longer TBs

Download Blacet’s EG BASIC MANUAL.

Modifications:

  • Front-Panel-Express MOTM style panel
  • Added gate comparator with Schmitt function
  • Added attenuated VC input that controls all time factors
  • Calibrated for 0 to +5V output
  • VC inputs calibrated for 5V sensitivity
